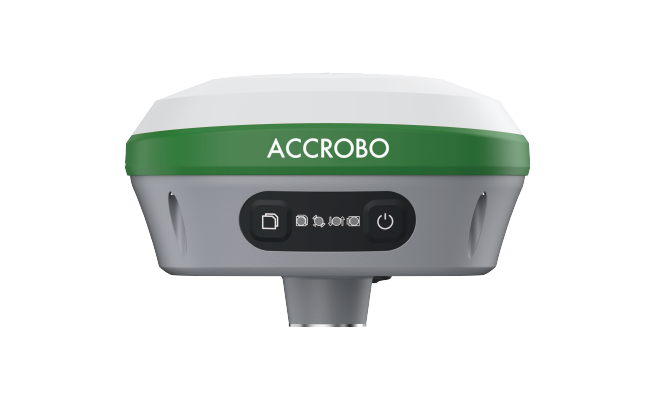

ALL-IN-ONE DESIGN
The device has built-in Bluetooth, radio, WIFI, storage, positioning, and antenna modules. It can switch between base station mode and rover mode for automatic switching between the rover and base station.
4G-Ntrip & UHF work at same time
Inside Website for one-step setting
Worldwide 4G Module support
One plug-in cable, faster to start
Landproxy Remote Setting, Tech Support quickly
ALL GNSS Signals, Surveying Level Accuracy
Transit Correction Data 24/7
L-shape Bracket, easy installation
ALL OF PARAMETERS
Signal Tracking:
BDS: B1I/B2I/B3I/ B1C/B2a/B2b
GPS: L1C/A/L1C/L2C/L2P(Y)/L5
GLONASS: G1/G2/G3
Galileo: E1/E5a/E5b/E6
QZSS: L1C/A/L1C/L2C/L5
NavIC: L5
SBAS: L1C/A
Cold Start Time: <12s
Initialization Time: <5s (typical)
RTK Initialization Reliability: >99.9%
Reacquisition Time: <1s
single point positioning:
Horizontal: 1.5m
Vertical: 2.5m
RTK Accuracy:
8mm+1ppm(RMS)
15mm+1ppm(RMS)
Static Accuracy:
2.5mm+1ppm(RMS)
5mm+1ppm(RMS)
speed accuracy:0.03m/s
Differential Data: RTCM3.X
Positioning Data: NMEA-0183
Static Data: Binary
Power Consumption:
Rover: ≤2.0W
Base Station: ≤2.2W
Battery Life:
Rover: ≥20h
Base Station: ≥15h
Radio Frequency: 410-470MHz
Input Voltage: 9-36V DC
Battery Capacity: 10000mAh
Radio Power: 0.5W/1.5W
Storage Capacity: 32GB
Data Refresh Rate: Default 1Hz, up to 20Hz
Interface Types:
Type-C, SIM card slot, TNC connector
Bluetooth:
BT4.1, backward compatible with BT2.x,
supports Windows/Android/iOS systems
WiFi: IEEE 802.11 a/b/g/n
Tilt Angle: 0-60°
Tilt Accuracy: 2.5cm (within 30°)
